Windows 7 System Depanelizer PCB Router Machine Morning Star Spindle

PCB Depanelizer Router Morning Star Spindle with Reasonable Price

1. Manual loading/unloading processing

2. 2-way sliding working exchanger to limit the idle time and simultaneously loading and unloading to reaches the utmost output value.

3. Friendly touch panel with 10X CCD camera to minimize the time of programming

4. Auto fiducial mark point check and cutting route auto compensation to ensure the cutting accuracy

5. Auto router bit check to prevent the bit break incomplete cutting.

Specification

• Setting Fixture : 2 stations
• Working Area : X: 320mm, Y: 320mm, Z: 60mm
• Cutting Area : Max: X: 320mm, Y: 320mm　Min: X: 100mm, Y: 100mm Z: 15mm
• PCB Component Height : Top side: 15mm Bottom side: 45mm(with specific jig)
• PCB Thickness : 0.5 to 3.0 mm
• Router Bit Diameter : 0.8 ~ 2.0 mm(Option: Over 2.0mm)
• Precision of Cutting : ± 0.10 mm
• Positioning Accuracy : ± 0.01mm
• Positioning Repeatability : ± 0.02mm
• Number of Axis in use : 7 Axis (X, YL, YR, Z, Carry, P/P, Conveyor).
• Driving Speed (Max) : X, YL, YR : 1000mm/sec, Z: 750mm/sec
• Cutting Speed (Max) : X, Y, Z: 100mm/sec (It's according to the specification of Bit for the best speed setting )
• Spindle Motor : High speed variable frequency motor 150W (Max.50,000rpm)
• Bit Change : Manual
• Cutting Ability : Linear, Circular, U-curve, Arc, L-curve
• Motor of Axis : 7 Axes (150W AC Servo motors)
• Bit Shift Count : Max. 2
• Route Planning : Direct coordinate input or manual guiding with × 10 CCD camera
• Safety Area Sensor : n/a
• Bit Break Detection : Standard
• Program Storage : HDD
• Program Backup : USB
• Operating System : Windows 7
• Man-Machine Interface : Touchscreen Industrial Monitor + Keyboard + Mouse
• Conveyor Adjustment : Manual adjustment Max: Y: 350mm　Min: Y: 100mm
• Conveyor load capacity : Max: 2 Kg
• PCB Loading/Unloading : Automatic
• Power Supply : 3 Phase AC220V±3% 50Hz/ 60Hz, 3.5 kw
• Air : 0.5Mpa
• Dimensions : (W)2002mm x (D)1279mm x (H)1716mm + 578mm signal tower
• Weight : approx. 500 Kg

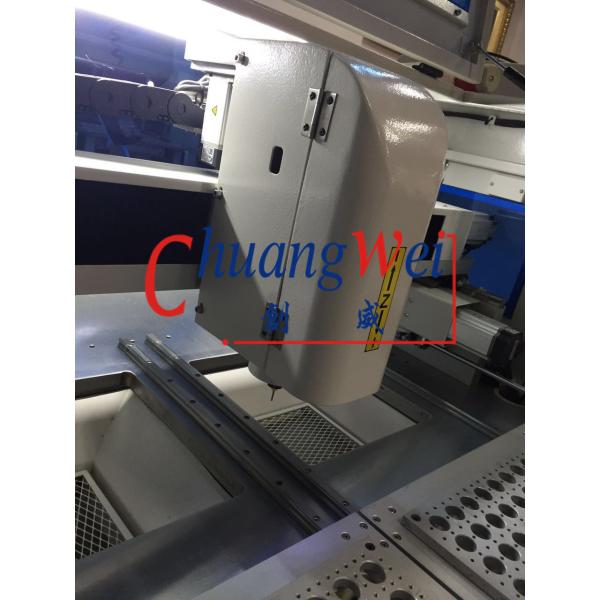

Machine details:

automatic router machine

printed circuit board router
